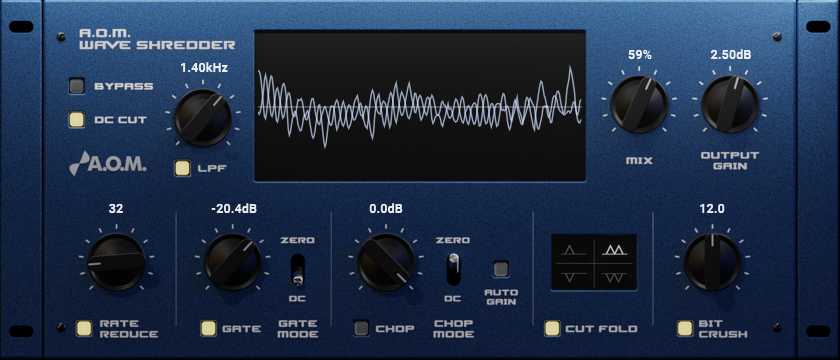

Wave Shredder

../_images/screenshot14.png

Controls

Examples in this section are obtained from the input waveform below.

../_images/original.png

Rate Reducer

../_images/rate_reduce_control.png

Performs zeroth-order hold. Rate reduce control specifies the duration of holding.

../_images/rate_reduce.png

Gate

../_images/gate_control.png

Drops waveform under the threshold, to zero.

../_images/gate.png

When mode is DC, the gate performs zero-order hold at the threshold.

../_images/gate_dc.png

Chop

../_images/chop_control.png

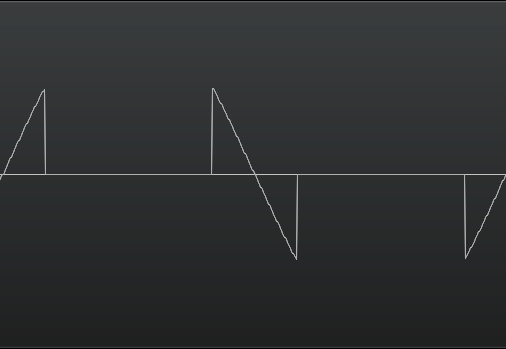

Drops waveform over the threshold, to zero.

../_images/chop.png

When mode is DC, the chopper performs zero-order hold at the threshold.

../_images/chop_dc.png

Cut/Fold

../_images/cutfold_control.png

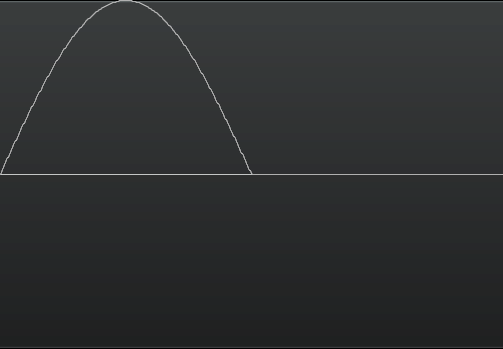

For removing settings, Wave Shredder removes positive or negative part of input waveform.

../_images/remove_lower.png

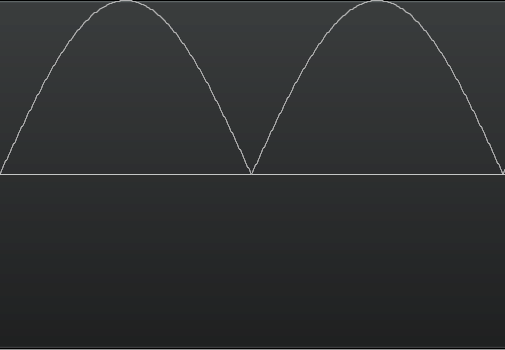

For folding settings, Wave Shredder inverts positive or negative part of input waveform.

../_images/fold_up.png

Bit Crush

../_images/bitdepth_control.png

Performs bit-depth reduction. For the setting of 2.0 bit, we have the waveform below.

../_images/bitdepth1.png

DC Cut

../_images/dc_cut_control.png

When DC Cut is enabled, Wave Shredder applies high-pass filter at very low frequency. The filter removes offset from waveform.

The following example is applied DC Cut after folding up.

../_images/dc_cut1.png

Mix

../_images/mix_control.png

Specifies the ratio of original input waveform and processed waveform.

For rate reducing and mix at 50%, we have the waveform below.

../_images/mix2.png

LPF

../_images/lowpass.png

Specifies cutoff frequency of lowpass filter.

Bypass

../_images/bypass4.png

Bypass all processing when enabled.

Gain

../_images/gain3.png

Adds gain to output signal.

Introduced in version 1.7.4.
