Track Symbiosis

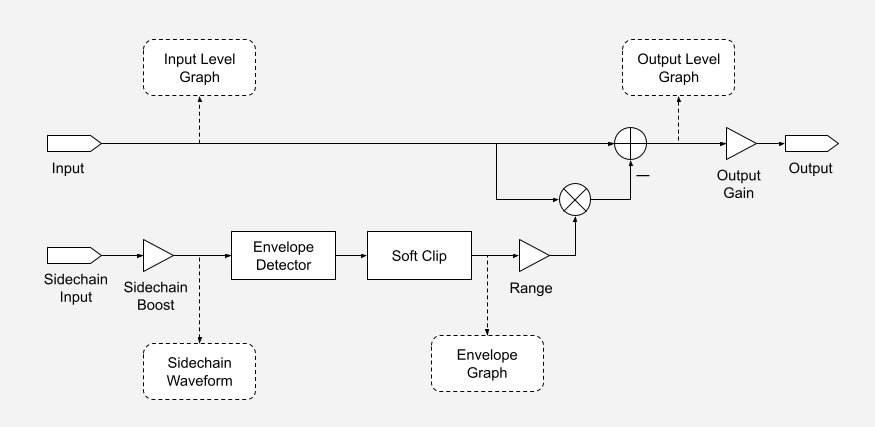

Block Diagram

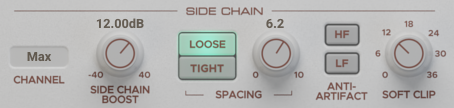

Side Chain Controls
- Channel
- Max
Treat sample-wise maximum value among input channels as side chain input.
- Left/Right/Mid/Side
Treat left/right/mid/side channels as side chain input.
When side chain input has three or more channels (surround), this plugin behaves as if ‘Max’ is selected.
- Side Chain Boost
Gain applied to side-chain input
- Spacing Mode Buttons
Envelope smoothing algorithm
- Spacing Knob
Envelope smoothing amount
- Anti-Artifact HF
Reduce high frequency distortion
- Anti-Artifact LF
Reduce low frequency distortion
- Soft Clip
Envelope clipping curve
Main-Line Controls
- Range
Maximum reduction amount
- Output Gain
Gain applied to main signal after reduction

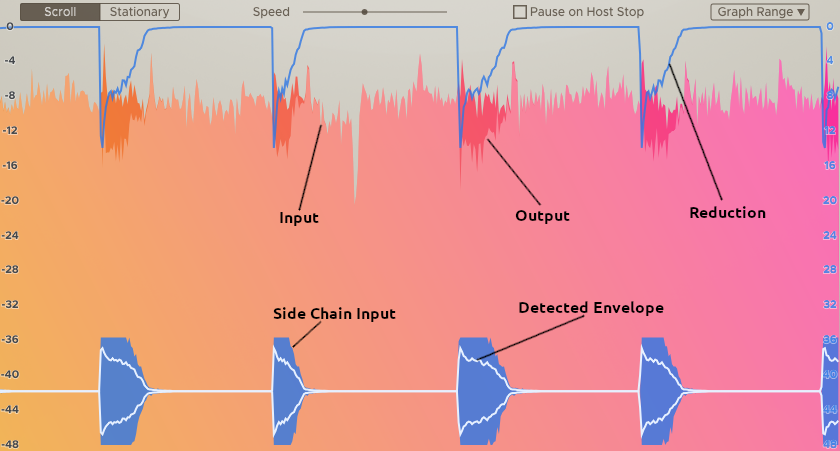

Graphs
- Input
Shows peak value of main input signal
- Output
Shows peak value of output signal
- Reduction (Blue Line)
Shows reduction amount
- Side Chain Input (Blue Filled Area)
Shows side chain input waveform
- Detected Envelope (White Line)
Shows detected envelope
Graph Settings
- Update Method
Chooses graph update method
- Speed
Controls graph update speed
- Pause on Host Stop
When enabled, this plugin pauses graph update during host’s playback stop.
- Graph Range
Chooses display range of I/O and reduction graphs.
