Cyclic Panner

../_images/screenshot1.png

Block Diagram

../_images/block.png

Controls

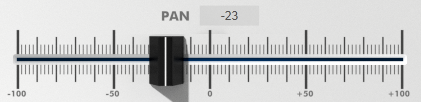

PAN / WIDTH

../_images/pan.png

../_images/width.png

Controls the behavior of Pan/Width block.

LPF LINK

../_images/lpf_link.png

Controls the behavior of LPF blocks. When enabled, a low-pass filter is inserted into the opposite channel of current pan slider place.

../_images/lpf.png

Input / Output Channel Matrix

../_images/matrix.png

Selects the behavior of input/output channel matrix.

Available values for INPUT

Stereo: Do nothing
Left: Copy left channel to right channel
Right: Copy right channel to left channel
Mid: Set L+R component to both channels
Side: Set L-R component to both channels
M/S Decode: Set L+R component to left channel, L-R component to right channel

Available values for OUTPUT

Stereo: Do nothing
Left: Copy left channel to right channel
Right: Copy right channel to left channel
M/S Encode: Set L+R component to left channel, L-R component to right channel
Swap L/R: Swap left and right channel

Field Meter

../_images/field_meter.png

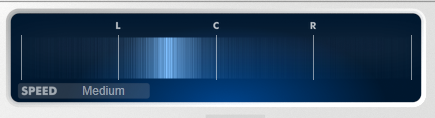

Field Meter shows current distribution of sound field. Smoothing window size can be changed by SPEED control.
